Important Notice: This product is sold as a barebone system and does not include CPU, RAM, hard disk, WiFi card, or WiFi antennas. Please contact us for complete system pricing.
Product Overview

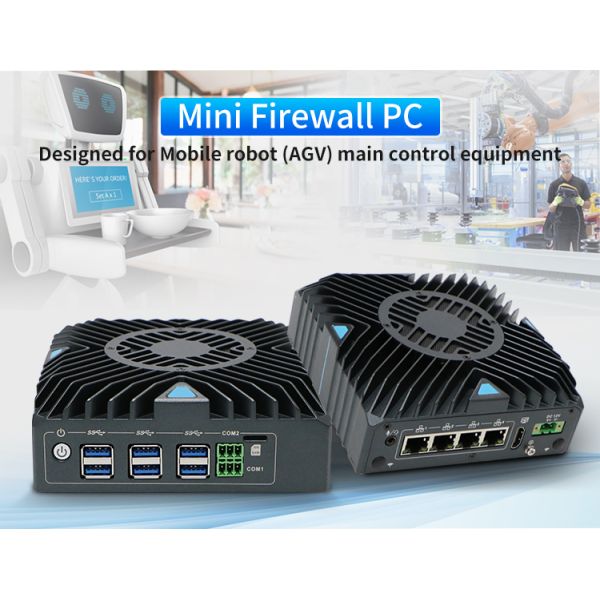

Compact industrial mini PC featuring Intel Core i7-10810U processor with four Intel Ethernet ports, ideal for firewall applications and industrial automation.
Technical Specifications
| Model | Nano-N312F |
| Color | Metallic gray (customizable) |
| Material | High-quality aluminum alloy |
| Processor | Intel Core i7-10810U (Six core, 12 threads, 1.1 GHz base, 4.9 GHz max turbo) |
| Memory | 1×DDR4 2400/2666 SODIMM slot, supports up to 32GB |
| BIOS | AMI UEFI BIOS |
| Chipset | Intel UHD Graphics 620 |
| Display Port | 1×HDMI (4096×2304@24Hz) |
| Front I/O | Power button, 6×USB 3.1, SIM card slot, 2×3-pin Phoenix ports (optional RS232/485) |
| Rear I/O | Audio/Mic, 4×RJ45, HDMI, DC 12V input |
| Expansion Slots | 1×M.2 2280 M-Key (SATA/NVME), 1×Mini PCIe (WiFi/3G/4G) |
| Network | 4×Intel i210-AT/i211-AT Gigabit LAN |
| Storage | 1×M.2 2280 slot, 1×2.5" SATA HDD, supports RAID 0/1 |
| Power Supply | DC 12V |
| Operating Temperature | 0°C to +40°C (commercial HDD), -20°C to +50°C (industrial SSD) |
| Operating Humidity | 5% to 95% non-condensing |
| Dimensions | 135 × 134 × 48 mm |
| Weight | 0.83 kg |
| Installation | Wall-mounted or desktop |
System Features
- Auto power-on when electricity is restored
- Timing boot functionality
- Wake on LAN support
- PXE boot capability
- Watchdog timer (0-255 levels)
- TPM 2.0 security
Product Images
Application Scenarios
Logistics Automation
AGV robots for efficient material handling in logistics and distribution centers.
Service Industry
Food delivery robots for restaurants and hospitality applications.
Pharmaceutical Industry
Medicine delivery robots meeting cleanroom and safety requirements.
Packaging & Shipping
- Delivery Time: 1-3 days for samples, 15 working days for bulk orders
- Packaging: Individual neutral boxes
- Shipping Methods: DHL, FedEx, UPS for small quantities; air or sea freight for bulk orders
Company Profile
YANLING Industrial Computer Technology (Shenzhen) Co., Ltd - Established in 2000, headquartered in Shenzhen, China. A high-tech enterprise specializing in industrial computing solutions with ISO9001, CCC, CE, FCC, ROHS, and TUV certifications.
Our Services & Strengths
- OEM/ODM services available
- Sample orders accepted
- High-quality products with competitive pricing
- 3-year warranty with free repair service
Certifications
Frequently Asked Questions
Can you put my brand name (logo) on these products?
Yes, we provide OEM/ODM services. Customization process: 1) Provide requirements, 2) Design draft creation, 3) Customer confirmation, 4) Production.
How much do I need to pay for your OEM service?
$500 OEM fee, refunded when order exceeds 100 pieces.
What payment methods do you accept?
T/T, Western Union, PayPal.
What is the Minimum Order Quantity (MOQ)?
Single sample orders accepted for testing.
What is the lead time for your products?
1-3 days for samples, 15 working days for bulk orders.
